Gas Wall lamps - black - 4mm scale - DCC concepts

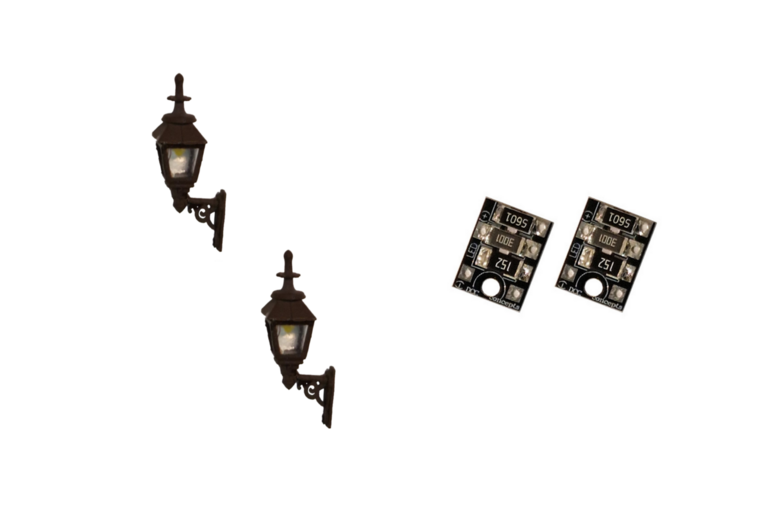

Pack Contents
2x 4mm scale wall lamps with 200mm connection wires
2x Resistor boards – suitable for connection to regulated DC power 6-12V

Installation Advice
Using a very small drill, drill the building wall to allow insertion of the fine wires. Use glue to fix the lamp to the building.
The longer of the 2 wires is the + lead. Connect your power supply to the resistor board and then try the lamp with each of the resistor values to select your preferred light level.
Alternatively, if a different level is wanted, you may also use any other value 1/4 watt resistor as long as it is larger than 1k Ohms.
Connect several lamps (up to 6) to one resistor board if you wish.
Power supply
Any regulated DC power supply between 6 and 15 volts will be suitable. (To save you any additional cost, you may find one in your bottom drawer, for example an unused mobile phone charger or any similar power supply).
